See specifications and data sheet for accurate information

LM-Z-N Series

Belt Driven Linear Actuator

Features
  • High load capacity
  • Long stroke lengths
  • High accuracy and repeatability
  • Fully enclosed
  • Compact dimensions
  • Easy mounting
  • Simple lubrication system
  • Long maintenance intervals
  • Simple motor mount options
  • High speed – 5m/s
– CAD / Data Sheets –
– Enquire –
Fill out this field
Please enter a valid email address.
Fill out this field
– Product Details –

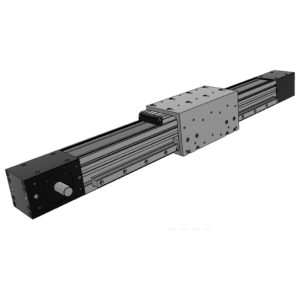

LM-Z-N Belt Driven Linear Actuator

Introducing the LM-Z-N single guided high-speed belt driven linear actuator from Line Tech AG. Encompassing Swiss made quality at every step, this high load, high speed, precision accurate linear actuator is designed to simplify and elevate any machine design. The LM-Z-N is typical of our commitment to offering innovative, industry leading linear motion solutions to cater for the varied range of application requirements across the UK & Ireland, and beyond.

FEATURES ENGINEERED FOR EXCEPTIONAL PERFORMANCE

Inherently Rigid: Incorporating a patented re-circulating linear ball guide design, the LM-Z-N offers excellent rigidity and market leading dynamic load capacity of up to 49,600N.

High-Speed Operation: With speeds of up to 5m/s, the LM-Z-N is capable of delivering not only good load capacity, but also the highest speed of any actuator in its class.

High Dust Protection: A fully enclosed design means excellent protection from dirt and debris, allowing this actuator to perform in the most demanding of environments.

Low-Cost Easy Fit Motor Mounts: We offer easy fit, low-cost options for gearbox and motor interfaces, totally tailored to your specific requirements.

Simple Mounting: A specially designed anodized aluminium body allows for easy mounting. Using off the shelf end and side fixtures, these fit simply into the grooves of the extrusion.

Long Travel: The ability to suit any application is continued with the availability of stroke lengths of up to 7900mm. Even longer travel lengths are available on request.

Precision Accuracy: Line Tech belt drive systems are market leading in repeatability figures. The LM-Z-N actuator can deliver precision 0.2mm repeatability.

Innovative Lubrication System: Easy long-term lubrication and maintenance are achieved through a two-way system. Lubrication can be carried out through the carriage which greases the actuator where it really needs it, the linear guides. Or through a custom designed system that allows for lubrication from different points for hard-to-reach applications.

Multi-axis Movement: LM-Z-N belt driven actuators are suitable for single or multi-axis applications and are available with standard connecting plates for easy XYZ configurations.

SPECIFICATIONS TO MEET DIVERSE ENGINEERING REQUIREMENTS

Available Sizes: Available in sizes 65 (LM3), 80 (LM4) and 110 (LM5) our linear actuator systems are designed to suit a wide array of design specifications.

Carriage Types: The LM-Z-N series is available with standard carriages and single or double carriage options, ensuring flexibility for various applications.

Kiwi Motion’s Promise of Excellence

At Kiwi Motion, we are dedicated to delivering linear motion solutions that are not only innovative but also reliable and efficient. The LM-Z-N series belt driven linear actuator is a testament to our commitment to excellence in high-speed, high load, precision accurate linear actuator technology, backed by our unwavering focus on competitive lead times, customer service, and technical support.

With Kiwi Motion’s LM-Z-N series belt driven linear actuator, engineers and professionals in various industries can now enjoy the benefits of a high speed, high load type linear actuator that brings together speed, precision, and strength in one package. Elevate your projects with the LM-Z-N Series – where cutting-edge technology meets practicality and durability.
