TE Series

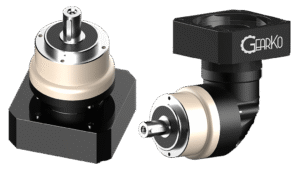

Precision Round Frame Planetary Gearbox

Features
  • Frame size: 50-235mm
  • Wide range of ratios: 3/4/5/6/7/8/10, 15-200
  • Minimum Backlash: 0-1arcmin
  • High precision model with additional frame shape option
  • High rigidity and output torque
  • Easy mount to any motor
– Enquire –
Fill out this field
Please enter a valid email address.
Fill out this field
– Product Details –

TE Series Extended Features:

  • Electroless nickel surface plating for anti-corrosion
  • Single-piece design for output shaft & planet carrier with robust bearings
  • Single-piece design for output shaft & planet carrier with robust bearings
  • Single-piece design for ring gear & housing
  • Single-piece design for sun gear & input shaft ensure high concentricity
  • Full complement solid uncaged needle roller bearings for planetary gears
  • All precision helical gearing for low noise and high precision
  • Extreme low vibration and lifelong maintenance-free

Product Series:

TE Series inline, round frame, Planetary Gearbox:

TER Series right-angle, round frame, Planetary Gearbox:

Product Model:

TE070 / TE090 / TE120 / TE155 / TE205 / TE235
TER070 / TER090 / TER120 / TER155 / TER205

Specification Overview:

Output Torque T1 : 40 Nm – 1500 Nm

Ratios
1-stage : 3 / 4 / 5 / 6 / 7 / 8 / 10
2-stage : 15 / 20 / 25 / 30 / 35 / 40 / 50 / 60 / 70 / 80 / 90 / 100

Low Backlash
1-stage : ≤1arcmin / ≤3arcmin / ≤5arcmin
2-stage : ≤3arcmin / ≤5arcmin / ≤7arcmin
