MR-W Series

Wide Minature Linear Guides

Features
  • Ultra small footprint
  • Wide Type
  • Market leading smoothness
  • Extremely low noise decibel level
  • Patented ball recirculation design
  • Patented built in environmentally friendly lubricant storage system
  • Stainless steel
  • High load, high moment for such a small linear guide
  • Patented reinforcement plate design
– CAD / Data Sheets –
– Enquire –
Fill out this field
Please enter a valid email address.
Fill out this field
– Product Details –

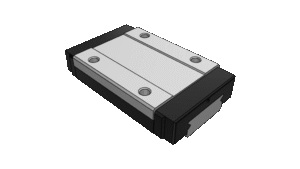

The Tiny Wide One – MR-W Series Linear Carriages

Introducing the MR-W Series Linear Carriages from CPC, a wide miniature linear carriage designed to revolutionize the way design engineers approach linear motion. This series is an embodiment of our commitment to providing high-speed linear rail solutions that cater to a diverse range of engineering needs across the UK & Ireland, and beyond.

FEATURES ENGINEERED FOR EXCEPTIONAL PERFORMANCE

Tiny But Mighty: Using a gothic arch profile means high load and high moment capacity housed within a super miniature linear guide.

Microscopic Sizes: The MR-W series linear guides are offered in tiny 2mm and 3mm diameter rails, opening new opportunities for even the smallest of applications.

Wide design: Designed to replace the use of two linear rails with one rail, this high load bearing guide can ease mounting alignment problems with the fitting of only one rail.

Equal Load in All Directions: These linear guides are masterfully designed to handle loads equally well in all directions, offering unparalleled versatility.

High-Speed Operation: Reach new heights with speeds up to 5m/s, showcasing the high-speed linear rail capabilities of the MR-W Series.

Innovative Lubrication System: The patented built-in lubricant storage and supply system in these linear guideways ensures efficient, long-term lubrication, reducing maintenance needs.

Enhanced Dust Protection: Select from a multitude of different sealing options created for high-particle environments or those prioritizing low friction, extending the life and reliability of these linear guides.

Patented Reinforcement Plate Design: This feature in our linear guides strengthens the runner block, offering enhanced rigidity, durability and even offers a scraper function for enhanced sealing.

Low Noise: CPC pride themselves on offering the quietest, smoothest running linear guides in the industry. Through a patented inverse hook ball recirculation method, low decibel level is achieved.

SPECIFICATIONS TO MEET DIVERSE ENGINEERING REQUIREMENTS

Rail Sizes: Available in sizes 2, 3, 5, 7, 9, 12 and 15 our linear guideways are designed to suit a wide array of design specifications.

Linear Carriage Types: The MR-W Series comes in Unflanged, and Unflanged Long types, ensuring flexibility for various applications.

Kiwi Motion’s Promise of Excellence

At Kiwi Motion, we are dedicated to delivering linear motion solutions that are not only innovative but also reliable and efficient. The MR-W Series Linear Carriages are a testament to our commitment to excellence in high-speed linear rail technology, backed by our unwavering focus on competitive lead times, customer service, and technical support.

With Kiwi Motion’s MR-W Series Linear Carriages, engineers and professionals in various industries can now enjoy the benefits of a compact linear carriage that brings together speed, precision, and strength in one package. Elevate your projects with the MR-W Series – where cutting-edge technology meets practicality and durability.

– Technical Specifications –
Weight: N/A
Dimensions: N/A
Rail Size (mm)2, 3, 5, 7, 9, 12, 15
Linear Carriage TypeUnflanged, Unflanged Long

From: £34.07

Estimated delivery in 6-12 working days

CONFIGURE
