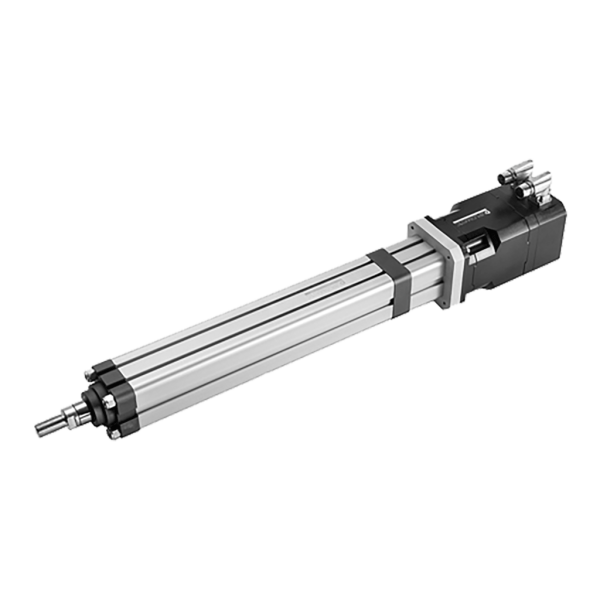

EC*3 Series Electromechanical Cylinders

The EC*3 series electromechanical cylinders from Duplomatic are engineered to provide precise, reliable linear motion for a wide range of industrial applications. Designed in accordance with ISO 15552 standards, these electromechanical cylinders are directly compatible with conventional pneumatic cylinder interfaces, making them an ideal solution for upgrading existing systems to electric linear actuation without extensive redesign.

With a focus on durability, control and efficiency, the EC*3 range of electromechanical cylinders meets the increasing demand for cleaner, more energy-efficient alternatives to hydraulic and pneumatic systems in modern automation.

Electric Cylinders Design and Construction

At the core of the EC*3 cylinders is a precision-engineered ball screw mechanism, manufactured from hardened, high-strength steel. This system enables the efficient conversion of rotary motion into smooth and controlled linear movement, ensuring high positioning accuracy and repeatability across demanding duty cycles.

The internal design of these electromechanical cylinders has been optimised for stability and long-term performance. A zero-backlash guidance system supports the piston within the barrel, reducing vibration and improving motion consistency. High-capacity bearings support the screw, allowing effective load transfer in both directions, while the reinforced rod design enhances resistance to buckling and radial forces.

This combination of robust materials and refined mechanical design ensures that the electromechanical cylinders deliver consistent performance even in challenging industrial environments.

Electromechanical Cylinders Performance and Range

The EC*3 series electromechanical linear actuators are available in a wide range of sizes, with bore diameters from 32 mm to 125 mm and stroke lengths extending up to 3 metres. This versatility allows engineers to select the most appropriate configuration for applications ranging from compact automation systems to high-force industrial processes.

These electromechanical cylinders are capable of handling significant dynamic loads, making them a strong alternative to hydraulic cylinders where precise control and reduced maintenance are priorities. The availability of different ball screw configurations, including oversized options, enables further optimisation for higher load capacity and extended operational life.

As a result, the EC*3 range supports both high-performance and long-life requirements across a diverse range of industries.

Electromechanical Cylinders Installation and Flexibility

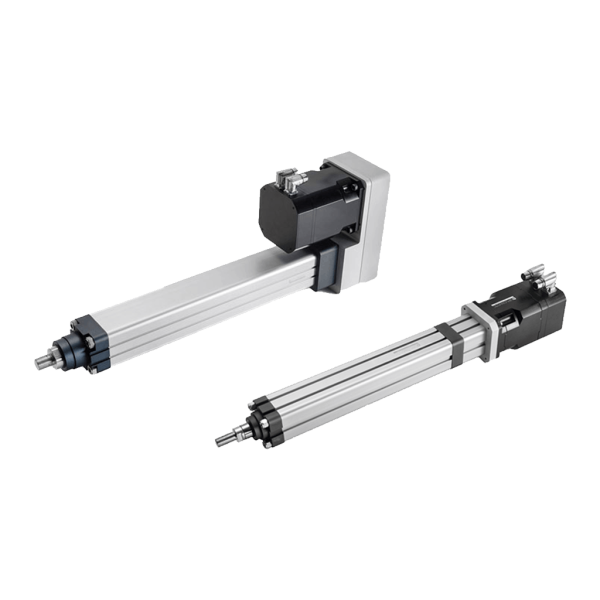

Flexibility is a key advantage of the EC*3 electromechanical linear actuators. They can be configured with either inline or parallel motor mounting, allowing easy integration into machines with varying space constraints. In parallel configurations, torque is transmitted via a durable timing belt, ensuring reliable power transmission even under demanding conditions.

The ISO 15552 design allows these electromechanical cylinders to utilise standard pneumatic mounting accessories, simplifying installation and reducing engineering time. Additional features, such as an optional anti-rotation device, further enhance operational stability in applications requiring precise linear guidance.

This adaptability makes the EC*3 electromechanical cylinders a practical and efficient choice for machine builders seeking modular, easy-to-integrate solutions.

Cylinders for Precision Automation

The EC*3 electromechanical cylinders are particularly well suited to applications where accurate positioning and controlled motion profiles are essential. Their ball screw-driven design allows for smooth acceleration and deceleration, providing precise control over speed and position even when handling significant loads.

These electromechanical cylinders can also be equipped with integrated sensing capabilities, allowing position sensors to be mounted directly within the cylinder body. This supports reliable end-of-stroke detection and enhances overall system control, making them ideal for advanced automation environments.

Typical applications include material handling systems, assembly equipment and automated production lines where repeatability, synchronisation and programmable motion are critical.

Electromechanical Linear Actuators Reliability and Environmental Performance

Designed for demanding industrial environments, the EC*3 electromechanical cylinders offer protection ratings up to IP65, ensuring reliable operation in the presence of dust and moisture. They are capable of operating across a wide temperature range and are suitable for continuous duty applications.

By eliminating the need for hydraulic fluid, these electromechanical cylinders reduce maintenance requirements and support cleaner operation. This makes them particularly advantageous in industries where environmental considerations, noise reduction and energy efficiency are increasingly important.

Electromechanical Cylinders Integration and System Benefits

The EC*3 range of electromechanical linear actuators delivers a strong combination of performance, flexibility and ease of integration. Their ISO-compliant design and wide range of configuration options enable them to replace traditional pneumatic or hydraulic cylinders while offering improved control and efficiency.

For machine builders and system integrators, electromechanical cylinders provide enhanced control over motion profiles, reduced system complexity and improved overall efficiency. As industrial automation continues to evolve, the EC*3 electromechanical cylinders offer a future-ready solution that aligns with the demands of modern manufacturing.
