BM-R-L-R Series

Externally Guided Bridge Module | Ball Screw Driven Linear Actuator

Features
  • Super high load capacity and rigidity
  • Lateral support linear rail and guide
  • High accuracy and repeatability
  • Fully enclosed
  • High sealing characteristics
  • Easy mounting
  • Simple lubrication system
  • Long maintenance intervals
  • Simple motor mount options
  • Range of diameters and pitches available
– CAD / Data Sheets –
– Enquire –
Fill out this field
Please enter a valid email address.
Fill out this field
– Product Details –

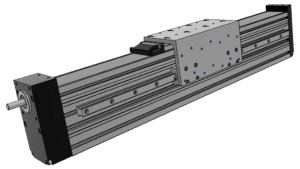

BM-R-L/R Bridge Module Ball Screw Driven Linear Actuator

Introducing the BM-R-L/R externally guided bridge module from Line Tech AG. Encompassing Swiss made quality at every step, this super high load, precision accurate linear actuator is designed to simplify and elevate any machine design. The BM-R-L/R is typical of our commitment to offering innovative, industry leading linear motion solutions to cater for the varied range of application requirements across the UK & Ireland, and beyond.

FEATURES ENGINEERED FOR EXCEPTIONAL PERFORMANCE

Unprecedented Load Capacities: Designed to be self-supporting for use within high load demand application with higher inertia, the BM-R-L/R bridge module stands up to be counted.

Inherently Rigid: Incorporating an ultra-strong aluminium profile as the base carrier, the Line Tech bridge modules offer the highest rigidity of any actuator in its size range.

High Moment Load Capacity: Incorporating the clever external rail and guide design, the BM-R-L/R actuator is able to cope with applications with side loads.

High Dust Protection: A fully enclosed design means excellent protection from dirt and debris, allowing this actuator to perform in the most demanding of environments.

Low-Cost Easy Fit Motor Mounts: We offer easy fit, low-cost options for gearbox and motor interfaces, totally tailored to your specific requirements.

Simple Mounting: A specially designed anodized aluminium body allows for easy mounting. Using off the shelf end and side fixtures, these fit simply into the grooves of the extrusion.

Precision Accuracy: Line Tech ball screw drive systems are market leading in repeatability figures. The BM-R-L/R actuator can deliver 0.01mm precision repeatability.

Innovative Lubrication System: Easy long-term lubrication and maintenance are achieved through a two-way system. Lubrication can be carried out through the carriage which greases the actuator where it really needs it, the linear guides. Or through a custom designed system that allows for lubrication from different points for hard-to-reach applications.

Multi-axis Movement: BM-R-L/R ball screw driven modules are suitable for single or multi-axis applications and are available with standard connecting plates for easy XYZ configurations.

SPECIFICATIONS TO MEET DIVERSE ENGINEERING REQUIREMENTS

Custom Design: If your application falls outside of the standard range, Kiwi Motion and Line Tech’s promise is to find a solution for your machine design.

Ready to Install: With the self-supporting nature of the special aluminium carrier design, incorporating into your design and then fitment to the machine is made simple.

Kiwi Motion’s Promise of Excellence

At Kiwi Motion, we are dedicated to delivering linear motion solutions that are not only innovative but also reliable and efficient. The BM-R-L/R series ball screw driven bridge module is a testament to our commitment to excellence in high-speed, high load, precision accurate linear actuator technology, backed by our unwavering focus on competitive lead times, customer service, and technical support.

With Kiwi Motion’s BM-R-L/R series ball screw driven bridge module linear actuator, engineers and professionals in various industries can now enjoy the benefits of a heavy load type linear actuator that brings together speed, precision, and strength in one package. Elevate your projects with the BM-R-L/R Series – where cutting-edge technology meets practicality and durability.
