- Combined linear guide and ball screw
- Compact and space saving
- Extremely rigid
- High accuracy and repeatability
- Four-way directional load capacity
- Gothic arch groove technology
- High load capacity
- Easy mounting and maintenance
– CAD / Data Sheets –
See specifications and data sheet for accurate information
KS Series
Budget, Low Profile, Ball Screw Driven Linear Stage
Features
– Enquire –
– Product Details –

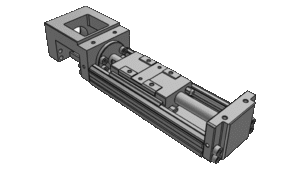

KS Ball Screw Driven Linear Actuator
Introducing the KS low-profile, cost-effective ball screw driven linear actuator. This high load, ultra smooth, quiet, precision accurate linear actuator is designed to simplify and elevate any machine design. The KS is typical of our commitment to offering innovative, industry leading linear motion solutions to cater for the varied range of application requirements across the UK & Ireland, and beyond.
FEATURES ENGINEERED FOR EXCEPTIONAL PERFORMANCE
High Load Capacities: Due to the combined linear guide ball screw design and Gothic arch groove technology, the KS actuator range offers extremely high load capacity in a compact form.
Inherently Rigid: Incorporating a re-circulating linear ball guide design and an all-steel construction the KS offers high stiffness.
Precision Accuracy: The KS ball screw drive system offers market leading repeatability figures. When the application demands precise motion, the KS responds with precision repeatability figures of just 0.003mm when choosing precision grade.
Space Saving: The combined linear guide ball screw design allows for high load capacity to be realised within an extremely compact footprint.
Low-Cost Easy Fit Motor Mounts: We offer easy fit, low-cost options for gearbox and motor interfaces, totally tailored to your specific requirements.
Simple Mounting: The steel construction and simple design offers easy mounting procedures to save time and money.
Ball screw Options: With multiple diameters and pitches to choose from for each size actuator, we have an actuator that you can incorporate into whatever the machine design demands.
Multi-axis Movement: KS ball screw driven actuators are suitable for single or multi-axis applications, with easy connections available for XYZ systems.
SPECIFICATIONS TO MEET DIVERSE ENGINEERING REQUIREMENTS
Available Sizes: Available in sizes 40, 50m 60, 86 and 100 our linear actuator systems are designed to suit a wide array of design specifications.
Carriage Types: The KS series is available with short or long carriages, single or double carriage options ensuring maximum flexibility.
Kiwi Motion’s Promise of Excellence
At Kiwi Motion, we are dedicated to delivering linear motion solutions that are not only innovative but also reliable and efficient. The KS series ball screw driven linear actuator is a testament to our commitment to excellence in high load, quiet and smooth, precision accurate linear actuator technology, at extremely affordable pricing levels, backed by our unwavering focus on competitive lead times, customer service, and technical support.
With Kiwi Motion’s KS series ball screw driven linear actuator, engineers and professionals in various industries can now enjoy the benefits of a compact, high load type linear actuator that brings together speed, precision, and strength in one package. Elevate your projects with the KS Series – where cutting-edge technology meets practicality and durability.
– Technical Specifications –
Weight: N/A
Dimensions: N/A
Size40, 50, 60, 86
Lead (mm)1, 2, 5, 6, 10, 12, 20
Rail Length (mm)100, 150, 200, 250, 300, 340, 400, 440, 500, 540, 600, 640, 740, 940
From: £302.81
SKU: KS
